How to build Frequency Divider with 7490

August 8, 2010 - category: Digital

Description

Here you will find a interesting collection from frequency dividers with division factor from 2 until 10. All the choices they are based in the 7490 that are a Decade and Binary Counter. If two 7490 are connected in cascade then we can achieve division factor of frequency of input of proportional factor each 7490. The voltage supply it‘s + 5V.

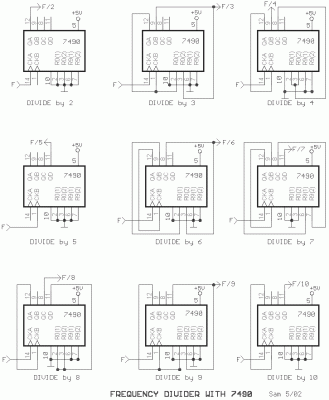

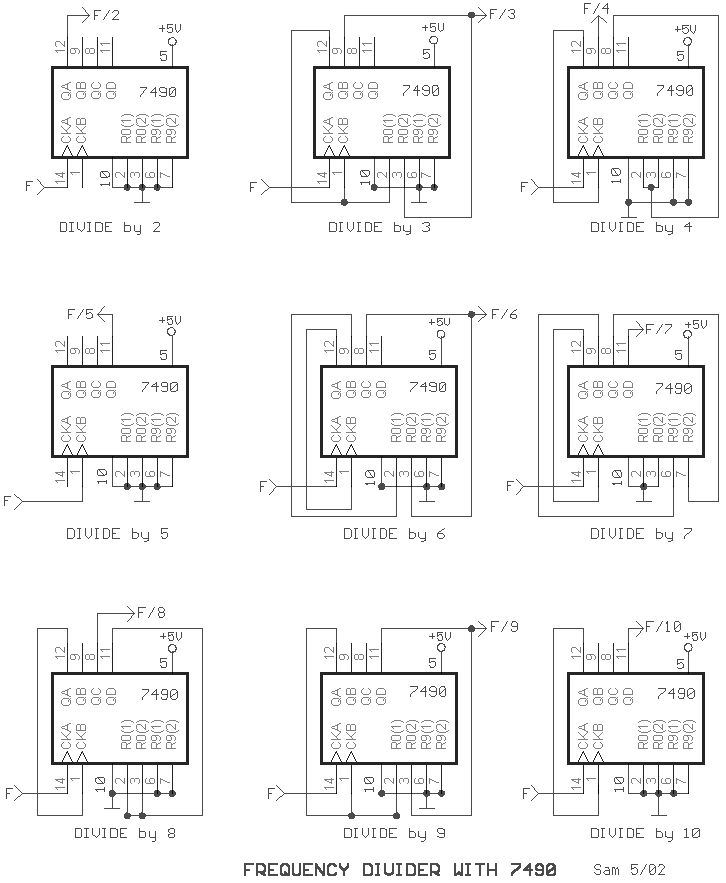

Circuit diagram

Circuit diagram







circuit from http://users.otenet.gr/~athsam/frequency_divider_with_7490.htm
