How to build Medium range transmitter

December 10, 2010 - category: FM transmitter

This is a medium range transmitter circuit diagram. This is also improved by changing the values of the resistor.

Circuit diagram

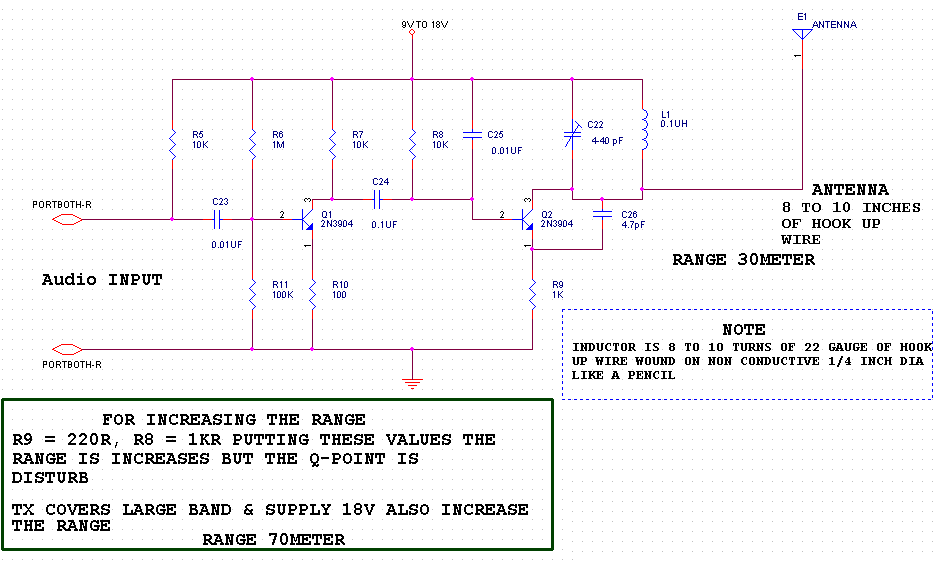

Medium range transmitter-Circuit diagram

Download this schematic in Orcad format

author: Ashad Mustufa, mustufa66@hotmail.com
circuit from http://www.electronics-lab.com/
