How to build Automatic Headlight Brightness Switch

December 13, 2010 - category: Automotive light


Driving the highway with your high-beam headlights can really increase your visibility, but can he a blinding hazard for other drivers. This simple circuit can be wired into your headlight switch to provide automatic switching between high and low beam headlights when there is oncoming traffic. It does this by sensing the lights of that traffic. In this way, you can drive safely with your high-beams on without blinding other drivers.

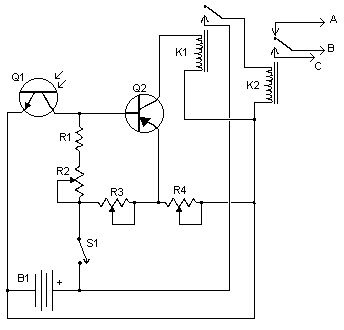

Circuit diagram

Automatic Headlight Brightness Switch-Circuit diagram


  • R1 5K 1/4W Resistor
  • R2, R3, R4 5K Pot
  • Q1 NPN Phototransistor
  • Q2 2N3906 PNP Transistor
  • K1 Low Current 12V SPST Relay
  • K2 High Current 12V SPDT Relay
  • S1 SPST Switch
  • B1 Car Battery
  • MISC Case, wire, board, knobs for pots


  • Q1 should me mounted in such a way so it points toward the front of the car with a clear line of site. Suitable places are on the dashboard, in the front grill, etc.
  • Adjust all the pots for proper response by testing on a deserted road.
  • S1 enables and disables the circuit.
  • B1 is, obviously, in the car already.
  • Before you try to connect this circuit, get a wiring diagram for your car. Some auto manufacturers do weird things with wiring.
  • Connection A goes to the high beam circuit, B goes to the headlight switch common and C connects to the low beam circuit.

circuit from http://www.aaroncake.net/
